YAMAHA AG125 4/S ELECTRIC START

Code: .NAG125

YAMAHA AG125 4/S ELECTRIC START

$3,999.00

Share (0)
Total: 0 Total: 0 Total: 0 Total: 0

Description

This new take on an old favourite is powered by a reliable 124cc air cooled four-stroke engine that delivers plenty of smooth, controllable power. Its square bore and stroke give a responsive delivery that gets the power to the ground for traction in the muddiest conditions.

Sporting many of the traditional AG bike features found on the original AG100, this model is designed and built for our tough Aussie conditions with modern conveniences such as an electric start and monoshock suspension. Sealed drum brakes and a sealed chaincase keep the mud out of hard-working parts while heavy duty front and rear racks and plenty of chain, engine and handlebar protection make this new AG bike a new farmer favourite.

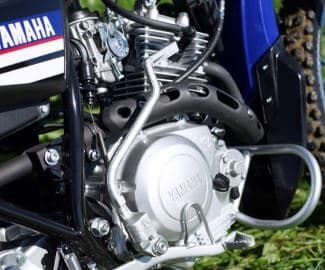

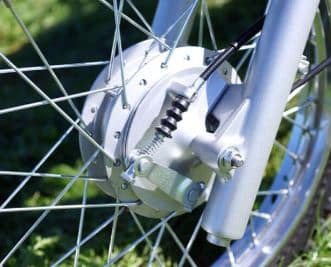

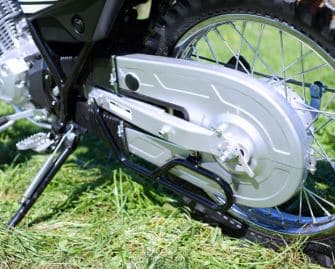

Bullet proof engine The AG125 is powered by a new 124cc four-stroke engine that offers smooth, reliable performance with minimal fuel consumption. A key engine feature is the low noise level, which is great for following stock. There is a fuel tap on the left side of the tank with on, off, and reserve, for when the steel 11-litre fuel tank eventually gets low and needs filling. Electric Start One of the most notable new features is the addition of an electric starter button. Running push button electric start makes getting up and running a breeze and in the unlikely event of battery issues, there’s a kick-start as a backup. Other controls are familiar and include a new dash with odometer and trip meter as well as lights to indicate neutral, high beam and indicators. Fully Enclosed Chain A fully enclosed chain is protected from mud and dust, ensuring extended life of both chain and sprockets and keeping costs down at service time. Chain adjustment has been made easier with the use of the snail-type cam, making this job fast and easy even if not mechanically inclined. Sealed Drum Brakes Braking is delivered by low maintenance sealed drum brakes front and rear. Drum brakes are ideal for farm use because while disc brakes can provide better stopping power in great conditions, farmers often encounter mud and dust that can drastically reduce the ability of a disc setup.

ENGINE

  • Engine TypeAir-cooled, 4-stroke, single cylinder
  • Displacement (cc)124.0
  • Bore x Stroke (mm)54.0 x 54.0
  • Compression Ratio10.0 : 1
  • Lubrication SystemWet Sump
  • Fuel ManagementCarburetter
  • IgnitionCDI
  • Starter SystemElectric and Kick
  • Fuel Tank Capacity (L)11.0
  • Final TransmissionChain
  • TransmissionConstant mesh 5-speed

CHASSIS

  • Frame TypeSemi double cradle
  • Suspension FrontTelescopic forks, 180mm travel
  • Suspension RearSwingarm, 130mm travel
  • Brakes FrontDrum
  • Brakes RearDrum
  • Tyres Front2.75-19-4PR Tube type
  • Tyres Rear3.50-18-4PR Tube type

DIMENSIONS

  • Length (mm)2110
  • Width (mm)940
  • Height (mm)1095
  • Seat Height (mm)800
  • Wheelbase (mm)1350
  • Ground Clearance (mm)225
  • Wet Weight (kg)113
