Description
When there is more than a couple of acres to be mowed and you want your
mower to last the distance the Stockman Pro delivers the goods. Fitted
with a Briggs & Stratton V Twin Intek Engines & combined with
either our 35? (890mm) or our 40? (1016mm) fabricated deck this mower is
designed to take on the hard work. The Stockman Pro is designed for
landowners who need a powerful machine for large areas or difficult
terrain. Slash fire breaks, tackle the back paddock or mow your lawn.
This Aussie legend can handle it all with ease.

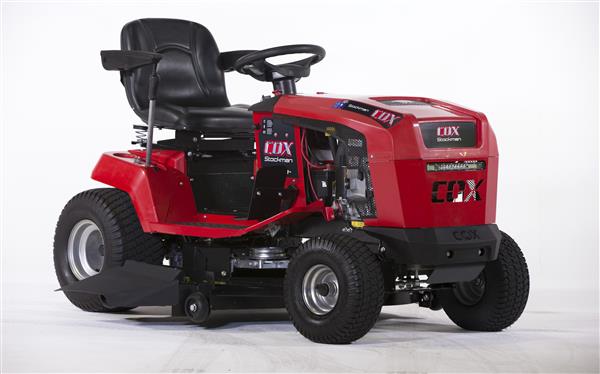

Models: Stockman Pro – CTH20B35/CTH20B40
Engine B&S 20HP Intek V-Twin
Cylinders V-Twin
Displacement 656cc
Oil Capacity 2.0LT
Engine Warranty 2 Yrs B&S Covered
Drive
Drive Type Hydrostatic with Auto Locking Di
Drive Model Tu Torq K46EH (Auto Lock)
Drive Warranty 2 Yrs Conditional
Ground Speed FWD 0-9KPH/REV 0-3KPH
Cutting System
Cutter Deck Width 35″ (890mm) / 40″ (1016mm)
Blade Engagement Ogura Electromagnetic Clutch
Cutter Belt Type Premium B-Section
Height Range 15mm-85mm
Blade Type Heavy Duty Swing Back
Chassis
Tyres 15×6.00-6 (F) , 18×9.5-8 (R)
Head Light Standard
Seat Preimum Highback Seat
Seat Adjustment Fingertip Adjustment
Hour Meter Standard
Construction Fabricated Steel
Steering Wheel Premium Steering Wheel
Dimensions
Length 1720mm
Width 885mm / 1250mm
Weight 230Kg /238Kg
Warranty 5 Yrs Conditional
